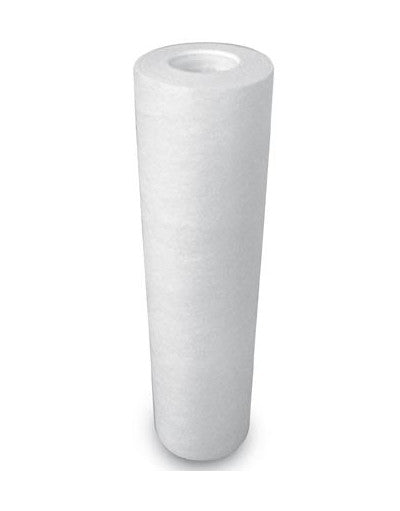

100% Polypropylene Melt Blown Cartridges with a Fixed Pore Structure That Deliver High Dirt Holding Capacity and Consistent Performance, with a 99.9% efficiency rating
- Graded Pore Structure Increases Dirt Holding Capacity and Filtration Efficiency
- Proprietary Inter-Zone Bonding Process Provides a Rigid Filtration Structure
- That does not Compress as the Differential Pressure Increases
- High Purity Material Allows Optimization of the Filtration Media for Longer Life
- Easy and Safe Cartridge Disposal via Incineration, Shredding or Compaction
- 100% Polypropylene Construction – Non-Fiber Releasing Matrix
- Cartridges are Free of Surfactants, Binders, Anti-static Agents and Adhesives
- Materials are FDA Listed for Food and Beverage Contact
- Materials are NSF Certified
This product requires case quantities.
10" - 30 per carton
20" - 15 per carton
30" - 15 per carton
40" - 15 per carton
Materials of Construction
- Filter Media: Melt Blown Polypropylene
- End Caps: Polypropylene
- Extended Core: Polypropylene
- Gaskets/O-Rings: Silicone, Buna-N, Viton, EPDM
- Outside Diameter: 2.5” (63mm)
- Inside Diameter: 1.1” (28mm)
- Lengths: 4” to 50” (101.6mm to 1270mm
- 99.9% Retention Rating: 1, 3, 5, 10, 20, 30, 50, 75,100μm
- Maximum Operating Temperature: 158oF (70oC)
- Recommended Change Out Differential Pressure: 35 psid (2.4 bar)
Dimensions, Rated melt blown filters
- Outside Diameter: 2.5” (63mm)
- Inside Diameter: 1.1” (28mm)
- Lengths: 4” to 50” (101.6mm to 1270mm
Performance Specifications
- 99.9% Retention Rating: 1, 3, 5, 10, 20, 30, 50, 75,100μm
Operating Conditions
-
Maximum Operating Temperature: 158oF (70oC)
-
Recommended Change Out Differential Pressure: 35 psid (2.4 bar)
FDA Listed Materials
All Materials Meet U.S. Food and Drug Administered Requirements for Food and Beverage Contact (CFR 177.1500
- Chemicals
- Paint/Ink
- Water
- Plating
- Pharmaceuticals
- Food and beverages
- Microelectronics
- Cosmetics
